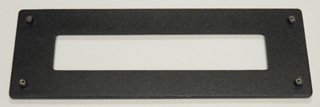

4 x 40  Character Display Bezels

190mm x 54mm displays
EC-0440A                    4 x 40 Character Display Bezel (no window)                   $13.79 ea.
EC-0440A-AW            with Bonded Acrylic Window Option                               $16.79 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-0440A fits many different brands of 190mm x 54mm, 4 x 40 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Crystalfontz                      CFAH4004A series
Lumex LCD                        LCM-04004D series
Matrix Orbital                    MOP-AL404C series
Newhaven Display           NHD-0440W and NHD-0440A series
Orient Display                   AMC4004C series
Winstar                              WH4004A series
and others

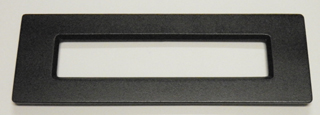

EC-0440F

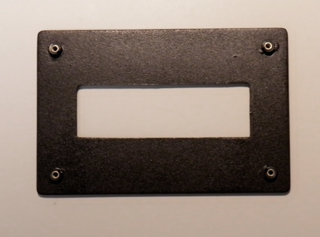

4 x 20  Character Display Bezels

98mm x 60mm displays

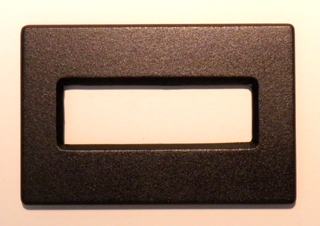

EC-0420D             4 x 20 Character Display Bezel (no window)                         $11.95 ea.
EC-0420D-AW     with Bonded Acrylic Window Option                                      $13.95 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-0420D fits many different brands of 98mm x 60mm, 4 x 20 character displays.
Please contact if you don't see your display model listed below.


This bezel fits the following displays:
Crystalfontz LCD                  CFAH2004A and CFAH2004B series
Crystalfontz OLED               CFAL2004A series
Gravitech LCD                       LCD-20X04 series
Lumex LCD                            LCM-S02004D series
Matrix Orbital  LCD              LK204-25 and LCD2041series
Matrix Orbital  OLED           OK204-25LK and MOP-A0204A series
Newhaven Display LCD      NHD-0420D series
Newhaven Display OLED    NHD-0420D series
Orient Display                        AMC2004A series
Winstar LCD                          WH2004A and WH2004B series

Winstar OLED                       WEH002004A and WEH002004B series
and others

146mm x 62.5mm displays
EC-0420E             4 x 20 Character Display Bezel (no window)                          $20.75 ea.
EC-0420E-AW     with Bonded Acrylic Window Option                                      $22.75 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-0420E fits many different brands of 146mm x 62.5mm, 4 x 20 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Crystalfontz LCD
                CFAH0420L series
Matrix Orbital  LCD             MOS-AL204B series
Newhaven Display LCD    NHD-0420E series
Orient Display                     AMC2004B series
Winstar LCD                        WH2004L series
and others

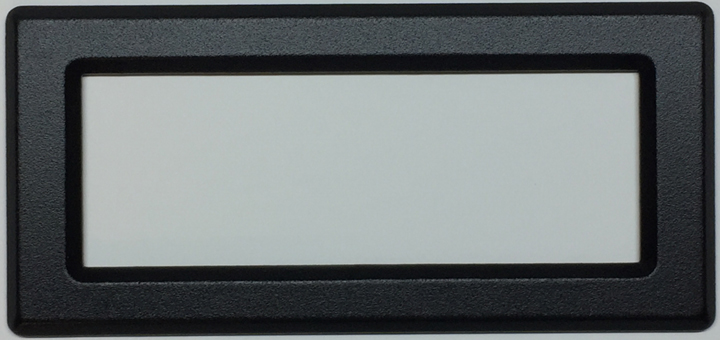

EC-0420E

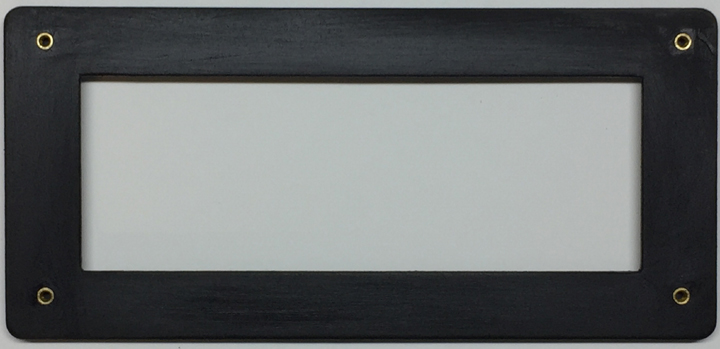

EC-0420E.b

77mm x 47mm displays
EC-0420A        4 x 20 Character Display Bezel (no window)                              $11.45 ea.
EC-0420A-AW     with Bonded Acrylic Window Option                                      $13.35 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-0420A fits many different brands of 77mm x 47mm, 4 x 20 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Crystalfontz               CFAH4002D series
Newhaven Display        NHD-0420A series
Orient Display                AMC2004C series
Winstar LCD                   WH2004D series
and others
92mm x 31.5mm displays
EC-L0420C        4 x 20 Character Display Bezel (no window)                              $14.95 ea.
EC-L0420C-AW     with Bonded Acrylic Window Option                                      $16.95 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-L0420C fits many different brands of 92mm x 31.5mm, 4 x 20 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Newhaven Display OLED
NHD-0420C series
Winstar OLED                            WEP002004C series
and others



2 x 20 Character Display Bezels

116mm x 37mm displays
EC-0220D       2 x 20 Character Display Bezel (no window)                               $11.95 ea.
EC-0220D-AW        with Bonded Acrylic Window Option                                   $13.95 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below
Our EC-0220D fits many different brands of 116mm x 37mm, 2 x 20 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following dsiplays:
Crystalfontz  LCD
               CFAH2002A series
Crystalfontz  OLED                 CFAH2002A series
Matrix Orbital  LCD                 LK202-25, MOI-AL202C,  MOP-AL202C, MOS-AL202C series
Matrix Orbital  OLED              MOI-A0202C,  MOS-A0202C, MOU-A0202C, OK202-25 series
Newhaven Display LCD         NHD-0220D series
Newhaven Display OLED      NHD-0220D series
Orient Display                          AMC2002C series
Winstar LCD                             WH2002A series
Winstar OLED                          WEH002002H series
and others



92mm x 23.3mm displays
EC-L0220C       2 x 20 Character Display Bezel (no window)                             $13.95 ea.
EC-L0220C-AW        with Bonded Acrylic Window Option                                $15.25 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below
Our EC-L0220C fits many different brands of 92mm x 23.3mm, 2 x 20 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Newhaven Display OLED
NHD-0220C series
and others

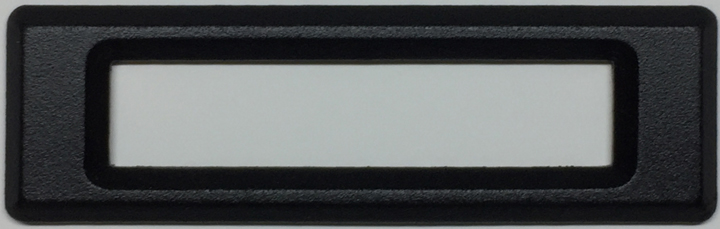

EC-L0220C

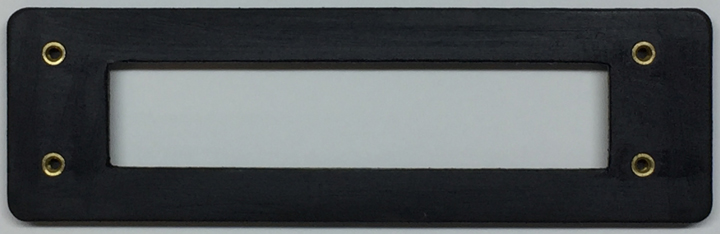

EC-L0220C.b

2 x 16 Character Display Bezels
84mm x 44mm displays
EC-0216B          2 x 16 character Display Bezel  (no window)                            $11.45 ea.
EC-0216B-AW       with Bonded Acrylic Window Option                                    $13.45 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below
Our EC-0216B fits many different brands of 84mm x 44mm, 2 x 16 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Crystalfontz  LCD         CFAH1602A series
Lumex LCD                     LCM-S01604D series
Newhaven Display       NHD-0216B series
Orient Display               AMC1602G series
Winstar LCD                 WEH001602E series
and others


80mm x 36mm displays
EC-0216K          2 x 16 character display bezel  (no window)                              $9.95 ea.
EC-0216KU         2 x 16 character display bezel  (no window)                            $9.95 ea.
EC-0216K-AW       with Bonded Acrylic Window option                                    $11.95 ea.
EC-0216KU-AW      with Bonded Acrylic Window option                                  $11.95 ea.
Note: KU bezels have minimized outside dimensions to fit 1U rack mount panels.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below
Our EC-0216K fits many different brands of 80mm x 36mm, 2 x 16 character displays.
Please contact if you don't see your display model listed below.


This bezel fits the following displays:
Crystalfontz  LCD                   CFAH1602J, CFAH160B series
Crystalfontz  OLED                 CFAL1602C series
Lumex LCD                                LCM-S01602D series
Matrix Orbital  LCD                 LK1622-12, MOI-AL162A,  MOP-AL162A, MOS-AL162A series
Matrix Orbital  OLED              MOI-A0202C,  MOS-A0202C, MOU-A0202C, OK202-25 series
Newhaven Display LCD         NHD-0216K series
Newhaven Display OLED       NHD-0216K series
Orient Display                         AMC1602A series
Winstar LCD                           WEH001602A series
Winstar OLED                        WEH001602A series
and others



122mm x 44mm displays
EC-0216SZ              2 x 16 character Display Bezel  (no window)                      $12.95 ea.
EC-0216SZ-AW     with Bonded Acrylic Window Option                                    $14.95 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-0216SZ fits many different brands of 122mm x 44mm, 2 x 16 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Crystalfontz  LCD                      CFAH1602L series
Crystalfontz  OLED                   CFAL1602L series
Lumex LCD                                 LCM-S01602D series
Newhaven Display LCD           NHD-0216S series
Newhaven Display OLED        NHD-0216S series
Orient Display                           AMC1602B series
Winstar LCD                             WEH001602H series
Winstar OLED                          WEH001602H series
and others



76mm x 24.6mm displays
EC-L0216C               2 x 16 character Display Bezel  (no window)                    $12.95 ea.
EC-L0216C-AW            with Bonded Acrylic Window Option                            $14.55 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-L0216C fits many different brands of 76mm x 24.6mm, 2 x 16 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Newhaven Display OLED         NHD-0216C Series
and others


image approximate

image approximate

1 x 16 Character Display Bezels

80mm x 36mm displays
EC-0116A           1 x 16   Character Display Bezel (no window)                           $9.95 ea.
EC-0116A-AW    with Bonded Acrylic Window Option                                       $11.95 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Our EC-0116A fits many different brands of 80mm x 36mm, 1 x 16 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Lumex LCD                                 LCM-S01601D series
Newhaven Display                   NHD-0116A series
Orient Display                           AMC1601A series
Winstar LCD                             WEH001601B series
Winstar OLED                          WEH001601B series
and others




1 x 8 Character Display Bezels

84mm x 44mm displays
EC-0108F               1 x 8 character Display Bezel (no window)                            $11.45 ea.
EC-0108F-AW       with Bonded Acrylic Window Option                                     $13.45 ea.
Bezels use 2-56 threaded inserts. See EC-256KIT mounting hardware kit below.
Fits Newhaven Display Models
Our EC-0108F fits many different brands of 84mm x 44mm, 1 x 16 character displays. Please contact if you don't see your display model listed below.

This bezel fits the following displays:
Newhaven Display                   NHD-0108F series
Orient Display                           AMC0801B series
and others




EC-256KIT  Display Mounting Hardware Kit            $2.95


Set of (4) display mounting hardware. Includes (4) ea. 1" x #2-56 studs, tabs, 1" x #8-32 screws.



Please contact us if you don't see a display bezel that meets your requirements. We make custom display bezels to fit nearly every display.
